Log J1939 data 

J1939 is a protocol that lets you log data from most heavy-duty vehicles.

In this section we outline how to log J1939 data with your CANedge.

Note

We recommend that you read our J1939 intro before proceeding

Table of Contents

Log J1939 data

Configure your device 

J1939 data is generally broadcast, meaning that you do not need to request it. Instead, you can use the default Configuration File with automatic bit-rate detection.

Record J1939 data 

To log J1939 data from a heavy-duty vehicle, you need to find a suitable way to connect the CANedge. Below are the most common methods:

DB9-J1939: This lets you record J1939 data from most trucks, buses, engines, tractors
DB9/DB9-OBD2: This lets you log both J1939/OBD2 in some trucks/buses
DB9-CAT: This lets you log J1939 data from some Caterpillar vehicles/engines
DB9/DB9-J1939: This lets you log 2 x J1939 networks in some vehicles (e.g. tractors)
CANCrocodile: This lets you log J1939 data directly from the CAN high/low harness

Once you’ve identified which adapter cable to use, you can follow below steps:

Connect the CANedge to your J1939 application via the adapter cable
Verify that the device turns on and logs data (see the LED section of the CANedge Docs)
Disconnect the device and use e.g. an MDF4 converter to view the raw data

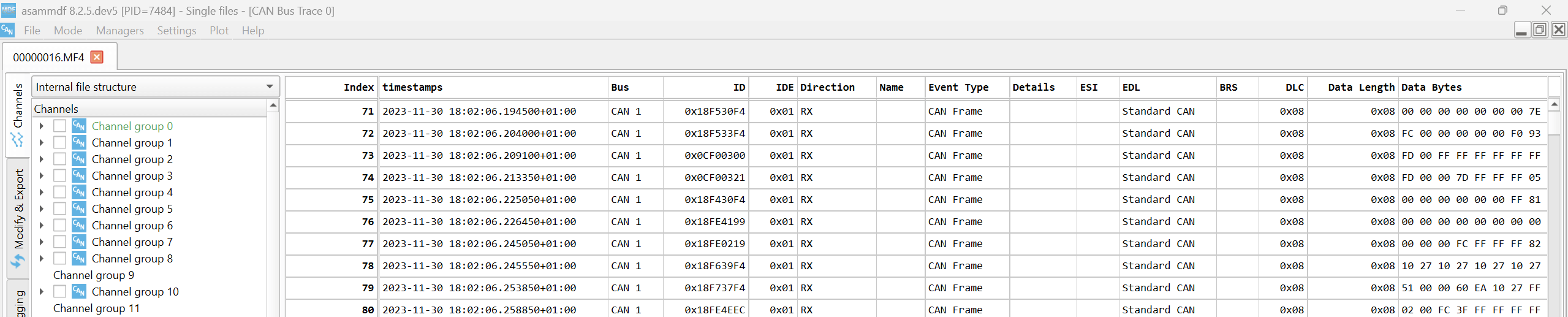

For J1939 data, your converted raw log file will typically look as below:

TimestampEpoch;BusChannel;ID;IDE;DLC;DataLength;Dir;EDL;BRS;DataBytes
1578923892.382550;1;18F0233D;1;8;8;0;0;0;FFFFFFFFFF0CFFFF
1578923892.384300;1;CF00400;1;8;8;0;0;0;087D7D000000F07D
1578923892.391950;1;14F00131;1;8;8;0;0;0;FFFFFFFF00FFFFFF
1578923892.392550;1;CF00A01;1;8;8;0;0;0;00000000FFFFFFFF
1578923892.393150;1;10F01A01;1;8;8;0;0;0;0000FFFFFFFFFFFF
1578923892.393750;1;10FCFD01;1;8;8;0;0;0;FFFFFFFF0000FFFF
1578923892.394300;1;18FD9401;1;8;8;0;0;0;C407FFFF00004B03
1578923892.394900;1;CF00400;1;8;8;0;0;0;087D7D000000F07D
...

Analyze and plot J1939 data 

The asammdf GUI intro details how to convert raw data into human-readable form and e.g. perform plots. This process requires a J1939 DBC file. For details, see the process section.

Filter J1939 PGNs 

See our section on how to reduce your log file size for guidance on PGN filtering.

Log J1939 on-request data 

In some cases, you may wish to log on-request J1939 data. To do so, you’ll need to transmit the relevant J1939 request frame into the CAN bus - see also our J1939 simple intro.

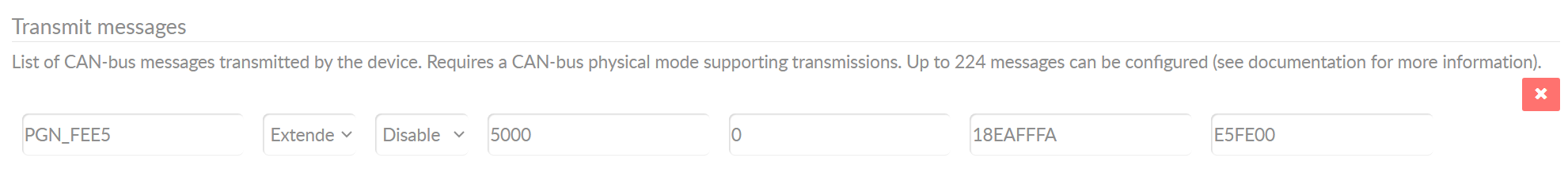

An example is PGN 65253 (FEE5) which contains the SPN Engine Hours. Below we show what the transmit message could look like for this particular PGN. There are two key things to note:

The transmit frame CAN ID is 18EAFFFA, reflecting the J1939 request PGN 59904 (EA00)
Note that we use a ‘global request’ (0xFF) and an arbitrary source address (0xFA)
The data contains the requested PGN FEE5 (note the byte ordering to E5FE)

Note that not all vehicles will respond to your request messages. Note also that transmitting data may cause vehicle sensors to “wake up” even if the vehicle is turned off. In most cases the CANedge turns off with the vehicle power supply - and if so, this is not an issue. However, if the CANedge is still on when the vehicle is turned off, you may want to implement a control signal to stop transmitting data in this case - see also our OBD2 section for examples.

{
  "can_1": {
    "transmit": [
      {
        "name": "PGN_FEE5",
        "state": 1,
        "id_format": 1,
        "frame_format": 0,
        "brs": 0,
        "log": 1,
        "period": 5000,
        "delay": 150,
        "id": "18EAFFFA",
        "data": "E5FE00"
      }
    ]
  }
}

Decode multi-frame data (J1939 TP)

J1939 often involves multi-frame responses as per J1939 TP, which means that data has to be reassembled before it can be correctly DBC decoded. To DBC decode multi-frame data, you can use the MF4 decoders.
